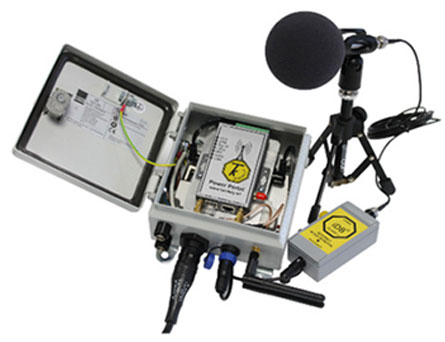

The Turnkey® internet iDB provides remote on-site multichannel monitoring of noise with data logging and automatic alarms via email, text messaging, or a visual traffic light system. Alarm types and thresholds for vibration and noise are configured by the user and their thresholds can be set to depend on the time of day.
The iDB is the ideal monitor for monitoring sound and noise. iDB gives Class 1 performance over a 95 dB dynamic range, so 30 dB to 120 dB SPL is covered in a single range.
Uniquely, iDB measures both dB(A) and dB(C) frequency weightings simultaneously, with F or S time weightings. iDB also reports statistical values such as L10, L90 and Lmax in both dB(A) and dB(C) simultaneously. Other statistical sound indicators over arbitrary periods can be calculated within AirQWeb from the uploaded readings.
The Turnkey iDB uses C1000 microphone, a patented design which employs a rugged MEMS (Microelectromechanical System) sensing element which has a linear response to 130 dB SPL, extended low frequency response down to 6 Hz (-3 dB), dynamic range of 99 dB, and less than 31 dBA of self-noise.
The C 1000 microphone uses an acoustic sensor, made from silicon wafers based on semiconductor production lines.
Construction sites
Industrial sites
Road and site traffic
Airports
Railways
Concerts and music festivals
Sporting events
Motorsports
Nightclubs
Safe and secure recording of data with multiple backup servers.
The iDB like other analyzersconnects to Turnkey’s AirQWeb cloud server. This allows integrated monitoring and control of noise, vibration, dust, meteorology, and air quality on your site.
Along with Noise data a 3D site mapping with 3D imagery, live readings and site placements shown on Google Earth. This feature is available both for PC and mobile device.
iDB has an internal NiMH rechargeable battery that allows continued operation and recording in the event of a site power outage. Measurements taken during power outages are automatically uploaded to AirQWeb when site power returns.
The iDB can be supplied in a Peli case, which makes is easy to store and transport for portable application.
| General | |
| Power Supply | 12 VDC |
| Battery | Nickel Metal Hydride ; 6V, 150 mAH |
| Battery life | 2 hours, in event of mains power failure Optional 12 hours battery backup available |
| Enclosure | Heavy Duty Machined Aluminium Diecast Box |
| Operating Voltage | 12 to 28 VDC (Typically: 24 VDC) |
| Protection | P 68 (Enclosure) IP 65 (sensor) |
| Operating Temperature | - 5OC to 50 OC |
| Communication O/P | RS 485, 38.4 kBaud |
| Internal Memory | 4 Mb flash |
| Reporting Interval | 1 second – 12 hours |
| Clock | Crystal controlled real time clock with battery backup |
| Calibration | 12 months interval |
| Dimensions | 100 mm x 50 mm x 35 mm (l x b x d) |
| Weight | 0.5kg |
| Noise | |
| Microphone | C1000, Class 1& Class 2 with Frequency response report |
| Microphone Interface | Constant Current, 18 V phantom power |
| Range | Dynamic: 30 dB – 120 dB |
| Measurements | Leq, L10, L90, Lmax, dB histograms |
| Reporting Interval | 1 second to 12 hours |
| Design Standards | BS 61672, 5228, 4969 IEC651 |
| 01/NO/i-DB-x | i-db Class 1,2 Noise monitor with Power Portal x – Class 1 or 2 |
| 01/OS/WEBSERVER | Web Server Package |
94 dB Piston Calibrator
Product Code: TK-94DB-PC
Field Power Supply
Product Code: TK- ELC - PS
Enhanced Aerial For Modem
Product Code: TK- COMM-M
Peli Case
Product Code: TK- CS
COMMUNICATION
Product Code: AN-COMM Previous ProductNext Product
