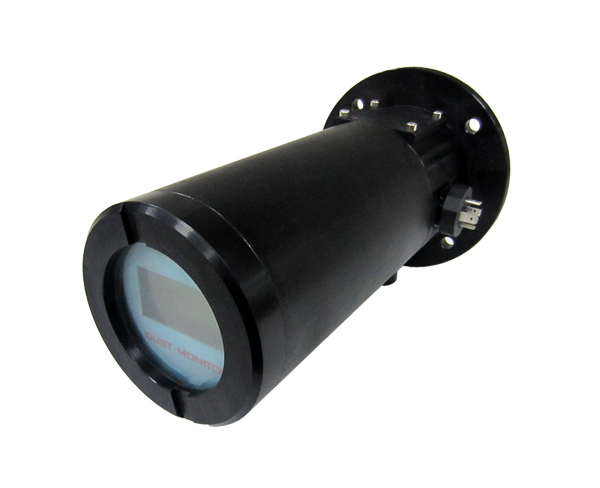

ADMS 1000 series

Overview
Features
Specifications
Parts
Accessories
Certifications
Downloads
Application

Overview

ADMS analyser is an online analyser for measuring concentration of Suspended particulate matter in industrial process/ boiler stack. Being capable of Auto /remote cleaning with digital communication, it provides a complete solution for stack monitoring. ADMS analyzers are designed and engineered as In-situ system with spectrum of technologies depending on suitability, type of stack and user requirements. The technologies offered are mainly listed as:

Point: Tribo Flow / Probe Electrification (Non – Optical)
Point: Light Scattering : Backward and Forward Scatter (Optical)
Cross Duct: Transistometry / Opacity (Based on Double pass Dynamic Detection Measurement)

Note: For detailed technological description please consult catalogue

Features

User Friendly Interface

ADMS series of analyzers are designed for ease of operation and installation. All technologies come with standalone controllers and remote modules. The interface allows offers features like measuring, zeroing, calibration, service and more. An RS232/485 port supports MODBUS protocol to transmit each measuring channel value to a Data Acquisation System and can be connected a SCADA system. Additional parameters like status code, error code, calibration values, are available as Standard protocols in Diagnostics.

Moisture Prevention

All ADMS analyzers are equipped with moisture prevention and corrosion control to increase efficacy and life of the instrument (probes/measuring optics). ADMS 1000 series comes with an optional Teflon coating to prevent moisture from deposition of dust particles. This coating also facilitates in corrosion control in acidic fumes. ADMS 2000 and ADMS 3000 can be upgraded with a shutter system which prevents interference from moisture, which is automatically programmed and covers the optics in case of high moisture content.

Analyzer Specifications

Technology	Tribo Flow	Laser Scattering	Opacity Monitor
Technical
Measurement Range	0 – 1000 mg/m³ (Available for higher range)	0 – 500 mg/m³ (Available for higher range)	0 – 1000 mg/m³ (Available for higher range)
Principle	Electrodynamic Induction	Backscattering	Dynamic Double Detection
Particle Size	0.3 μm or larger	0.3 μm or larger	0.3 μm or larger
Stack Diameter (m)	0.2 - 4	0.2 - 3	1 – 10
Application (Filter Type with Stack	Bag Collector, Cyclone Separator, Drier, Wet Scrubber	Bag Collector, Cyclone Separator, Electrostatic Precipitator	Bag Collector, Cyclone Separator, Electrostatic Precipitator
Operating Temperature	Max 400 °C, Max 700 °C (optional)	Max 600 °C	+ 600 °C Heat insulating gaskets included. (Higher temperatures on request)
Operating Humidity	0 – 100% RH (Non Condensing)	0 – 100% RH (Non Condensing)	0 – 100% RH (Non Condensing)
Ambient Temperature	- 15 to 50 °C	- 20 to 60 °C	- 20 to 55 °C
Materials	- Stainless Steel (SS 316, SS 316 L) - PEEK (Probe Insulation) - (FPM Viton (Probe Sealing)	- PEEK - SS 316 (Outer Body)	- SS 316 powder coated (Head) - UL rated polycarbonate enclosure; aluminium front panel with PU laminate overlay and with nylon cable glands (OI)
Protection	IP 67	IP 65	IP 65
Analog Output	Isolated 4 – 20 mA; 750 ohms load impedance	Isolated 4 – 20 mA; 800 ohms load impedance	Isolated 4 – 20 mA
Communication	• Modbus (Serial Communication (RS – 485/232) • Profibus • Ethernet (In Future Upgraded model)	• Modbus (Serial Communication (RS – 485/232) • Profibus • Ethernet (In Future Upgraded model)	• Modbus RTU via RS485 (OI or TRX) • Internal USB (OI), external USB (TRX) • Ethernet (In Future Upgraded model)
Power Supply	24 V DC	115 / 230VAC, 50/60 Hz, 0.37/0.43 kW	24V DC (± 10 % tolerance)
Velocity Dependant	Yes (Min 3 m/s)	No	No

Parts

ADMS 1000	Tribo Flow Based PM Analyzer
ADMS 2000	Laser Backscattering Based PM Analyzer
ADMS 3000	Opacity Based PM Analyzer
Note: Refer to product catalogue
