World’s First Gas Detection System

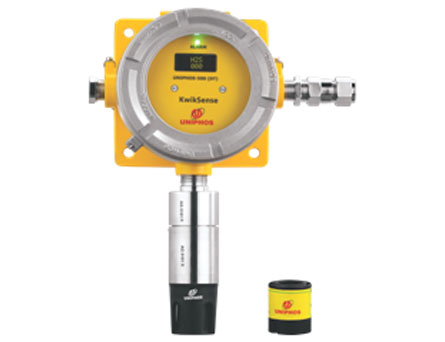

Uniphos KwikSense Smart Gas Transmitters are universal transmitters with plug & play sensor technology. They are capable of accepting more than 100 smart gas sensors. Non-intrusive calibration helps customers to calibrate the transmitters in hazardous area without opening the transmitter thus reducing the down time for calibration. Alternatively the smart gas sensors can be plugged out and calibrated in the lab and can be put back on the KwikSense transmitters.

Overview

KwikSense series digital gas transmitter is a field mountable device suitable for the detection and continuous monitoring of hazardous gases at industrial locations.

It provides an RS-485 MODBUS-RTU digital output signal that can be connected to any suitable control system viz. Uniphos controller, DCS, PLC, etc. It also provides an industry standard 4-20 mA analog output. The KwikSense is available for a large number of toxic and flammable gases viz. CO, H2S, SO2, Cl2, NH3, HCN, HCl, NO2, CH4 (%LEL), etc.

Application

KwikSense Monitor is useful at work place & confined space in Industries like:

Refineries

Cylinder storage yards

Oil and gas industries

Steel industries

Chemical and fertilizer plants

Pharmaceutical plants

Power Industries

Features

KwikSense fixed gas monitors are available spectrum of technologies depending on suitability, application and user requirements. The technologies offered are mainly listed as:

Electrochemical sensors (EC)

Solid State Sensors

Non dispersive Infrared Sensors

Pellistor Sensors

Photo Ionization detectors (PID)

Note: For detailed technological description please consult catalogue

These microprocessor based instruments are designed and engineered to be user friendly

Plug & Play Smart Sensor Technology

8x2 backlit alphanumeric LCD display

Non-intrusive calibration using magnetic wand

Tricolour LED for alarm indications

Fully configurable on-board potential free relay contact

Industry standard 4-20mA analog signal output (soft tunable)

3x inbuilt 3 potential free relay contacts (optional)

Input (24V) voltage monitoring and its status prompting on display

Cable fault detection and 4-20mA output signal disable

Inbuilt ambient temperature sensor

User settable alarm set-points

Provision to mute relay output

Self-testing of alarm LEDs and relays

Indication for no sensor, over-range, baseline drift

Digital communication by RS 485

CIMFR/ PESO/ ATEX certified to Exd IIC T6, IP66

Specifications

Sensor	Smart-swappable gas sensor
Operating temperature	-200C to 600C
Operating Humidity	0-95% RH (non-condensing)
Operating Pressure range	Ambient +/-10%
Operating Voltage	12 to 28 VDC (Typically: 24 VDC)
Power Consumption	< 3 W
Wire Cable System	3 /4 Wire system
Output Signal	Industry standard 4 - 20 mA sourcing (Cable load driving capacity: 650 ohm maximum) RS - 485 (MODBUS) on 4 core cable
Enclosure	Flameproof - cast aluminium alloy or SS-316
Body Coating	Epoxy
Protection	IP 66
Size	250 mm X 170 mm X 105 mm (without cable gland & stopper)
Weight	2.5 kg (Cast Aluminium Alloy) or 5 kg (SS316)
Standards Complied	EN/IS/IEC: 60079-0 EN/IS/IEC: 60079-1 IEC: 61508

Parts

KwikSense Lite	KwikSense latest transmitter without swapping
KwikSense RD	Remote transmitter bridges detector in field and OLED Display separate
Uniphos DT 500 RXSAH	Digital Transmitter R: Relay (0 – No relay ; 1 – With Relay) S: SIL2 certification A: ATEx H: HART
SS- 500 xxxx	Smart Sensor xxxx : Gas Code
Uniphos 500 WX	W: Wall Mountable controller X: No of channels (Upto 16 channels available)
Uniphos 500 RX	R: Rack Mountable controller X: No of channels (Upto 16 channels available)
Note: Refer to product catalogue
