World’s First Gas Detection System

Uniphos KwikAlert personal gas monitors are personal pocket sized meters to with plug & play sensor technology. They are capable of accepting more than 25 smart gas sensors. Non-intrThe UNIPHOS KwikAlert 300 gas monitor is a microprocessor based instrument for monitoring of work place environment for a specific target gas concentration for personal protection and safety. usive calibration helps customers to calibrate the transmitters in hazardous area without opening the transmitter thus reducing the down time for calibration. Alternatively the smart gas sensors can be plugged out and calibrated in the lab and can be put back on the KwikAlert Monitors.

Overview

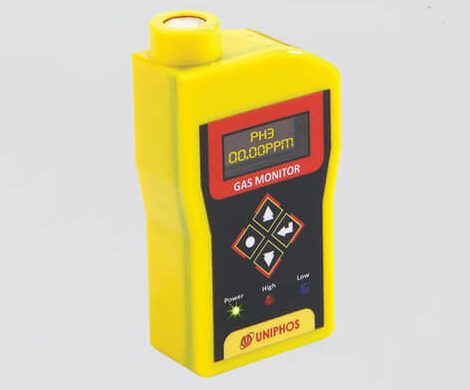

The UNIPHOS KwikAlert 300 gas monitor is a microprocessor based instrument for monitoring of work place environment for a specific target gas concentration for personal protection and safety.

With KwikAlert by your side to warn you of any gas exposure hazard, you are carefree to concentrate on your work. The instrument when put on, will continuously monitor and display the target gas concentration. It also computes the TWA concentration, watch out for exceeding STEL or ceiling limit and alerts the operator by giving visual & audible alarms set by the users.

Application

Confined Spaces

Fumigation

Occupational Safety & Health

Oil & Gas

Petrochemical Plants

Process Control

Research Laboratories

Features

High specificity to gas of concern.

Available for more than 25 gases by Electrochemical, Pellistor, PID, NDIR, etc sensors.

Quick response

Continuous display of the gas concentration reading

TWA & STEL / Ceiling Alarm

User settable Low & High Alarm

Built-in audible and visual alarms

Inbuilt Data logging & downloading facility

Easy to read OLED display.

Note: For detailed technological description please consult catalogue

Multi Gas Monitor

This hand held multigas monitor (four gas) is specially designed for monitoring the presence of toxic / flammable gases in confined spaces viz.

Sewers, reaction vessels, etc. It is a microprocessor based unit with inbuilt sample draw pump and fitted with 4 sensors which are user selectable. It is also provided with a sampling probe for drawing sample air from remote places. Depending upon the applications, the following two combinations of sensors are in vogue: •  CH4 (Combustible Gas), O2, H2S/CO & NH3 ( Sewer Entry Application)
•  CH4 (Combustible Gas), O2 & Two toxic gas / VOC sensors as per user’s requirement ( Vessel / Confined Space Entry Application) Advantages Over Single Gas Monitor •  Powerful inbuilt air sampling pump (15 m sample draw capability) for remote sampling •  Option of Bluetooth communication between instrument & Printer / PC
•  Ability to take an instantaneous report printout of the gas reading, with date / time stamp using a portable printer

Specifications

Sensor Electrochemical /Pellistor/Solid State/NDIR
Sampling Diffusion
Operating temperature -100C to 500C
Power Source 7.4 V, 1500 mAh Li-ion rechargeable battery.
Run time 7 – 8 hours on full battery charge
Output Signal USB (wired)
Bluetooth (wireless)
from instrument to computer or printer
Display Alphanumeric OLED Display
Enclosure ABS Plastic with Ingress Protection
Body Coating Epoxy
Protection IP 66
Size 130mm x 70 mm x 35 mm (H x W x D)
Weight Approx. 300 gms

Parts

KwikAlert 3XX (M) Portable Gas Monitor
xx: Gas Code
Note: Refer to product catalogue

Accessories

CALIBRATION GAS CYLINDERS

Product Code: AGMS-CAL-X
Gas cylinders for manual Calibration • Available in 3,10, 90 litres free volume

SAMPLING PROBE

Product Code: AN-PRO-3XX (M)
Probe for Gas Sampling • SS probe for sampling of gases for multi gases (specifically in sewer manholes and other inaccessible spaces
