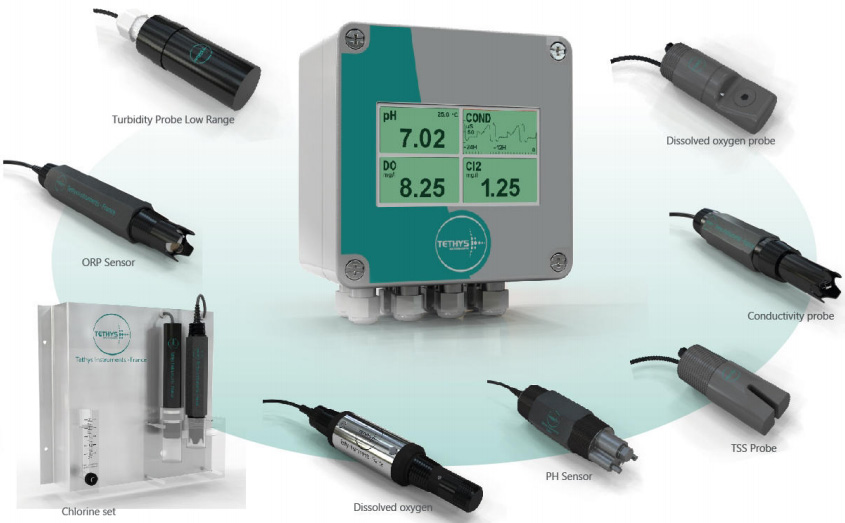

In continuation to Real time Online Analyzers, Anodyne offers range of probes / electrodes. With options for Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations Aqualog probes offer excellent chemical and impact resistance.
Industrial waste water treatment plant
Drinking water treatment plant
Other process water application
Municipal waste water treatment plant
Surface water application
| Parameter | pH | ORP (mV) | Dissolved Oxygen (mg/l) | MLSS (mg/l) | Chlorine (ppm/mg/l) | Conductivity (uS) / (mS) | Turbidity (NTU/FTU) |
| Technical | |||||||
| Range | 0 -14 - 2000 – 2000 |
0 – 20 | 0 - 50000 | 0 – 20 | 0 – 2000 uS | 0 -200 mS | 0 – 3000 FTU |
| Accuracy | ± 0.1 pH | ± 2 % | ± 2 % | ± 3 % | ± 0.1 mg/l | ± 2 % | ± 2 % |
| Response Time | 5 – 95 % of Full Response | 90%<45 seconds, 95%<60 seconds (Water temperature : 25°C) | Alarm timer (1 – 120 minutes) | 90 second to 90% (T-90), 25 °C | 5 seconds | 60 seconds | |
| Sensor Type | Convertible Style combination sensor | Convertible style combination ORP sensor | Luminescent Optical Technology | Optical (90 degree light scattering) | Membrane-covered, three electrode amperometric technology | Electrochemical | Optical (90 degree light scattering) |
| Sensor Protection | IP 68 | IP 68 | IP 66 | IP 68, maximum depth – 2m | IP 68 | IP 68 (maximum depth – 2m) | |
| Body Material | Ryton/Glass | Ryton/Glass | ABS/ SS 316 L | SUS 316L, Sapphire glass, Fluorocarbon rubber, EPDM, PVC (Cable) | Body Housing: PVC, ABS Membrane: Hydrophilic PTFE Electrode: Silver-Silver Halide/ Gold/316SS |
Polypropylene | SUS 316L, Sapphire glass, Fluorocarbon rubber, EPDM, PVC (Cable) |
| Sensing Element | Glass Electrode | Platinum | Optical Detector | Optical Detector | - | - | Optical Sensor |
| Mounting | Immersion or line | Immersion or In-line | Immersion/In-Line | Immersion or In-line Optional: Extractive using pump with sensor placed in flow cell/trough |
Immersion/ In-line or Extractive using mounting plate and panel | In-line (Flow through) | Immersion or In-line Optional: Extractive using pump with sensor placed in flow cell/trough |
| Operating Temperature Range | 0 – 80 O C | 0 – 80 O C | 0 – 80 O C | 0 – 50 o C | 0 – 50 OC | 0 – 80 O C | 0 – 40 OC Optional: 0 – 80 O C |
| Maximum operating Pressure | 100 psi | 100 psi | 100 psi | 100 psi | 15 psi | 100 psi | 6 bar maximum at 25 °C |
| Integral Cable Length | 6 meter | 6 meter | 10 meter | 9 m | 10 m | 6 m | Std. 6 m 10 m optional available |
| Calibration | Factory Calibrated On – site calibration with buffer |
Pre- calibrated ; on-site calibration | 1-Point, 2-Point, Concentration Option, Initialized Calibration | Automatic & Manual using Distilled water | Pre- calibrated ; on-site calibration | Pre- calibrated ; on-site calibration | Pre- calibrated ; on-site calibration with Distilled water |
| Cleaning | Automatic | Automatic | Automatic with air or water | Automatic wiper cleaning system | Automatic | Automatic | Automatic wiper cleaning system |
| Special notes | Automatic Temperature Compensation | - | Sensor cap replacement after 2 – 3 years | - | Automatic Temperature Compensation ; Flow requirement : 30 – 60 l/hr | Automatic Temperature Compensation | Clean once after immediately after power on and subsequently clean after 10 minutes |
Mounting Kit for TSS, MLSS
Product Code: AQ-SS-MT
Mounting Kit for Electrochemical Sensors
Product Code: AQ-EC-MT
Mounting Kit for Turbidity
Product Code: AQ-TBD-MT
pH Buffer Kit for calibration of pH sensor
Product Code: AQ-pH-CAL
