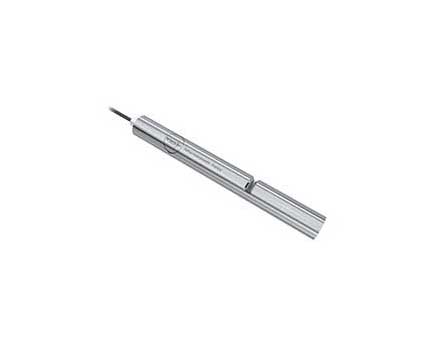

Anodyne full spectrum UV-Vis probe provides a simple way to measure a number of parameters among TSS, NO3, COD, BOD, TOC, UV254 and colour for surface water or industrial/municipal wastewater. It is based on a proven light source technology offering a long lifetime (> 10 years). The probe must be calibrated for each application to gives a COD or BOD or TOC equivalent measurement, at condition that the sample composition stays relatively constant.
The colour touch screen and intuitive interface available in different languages makes very easy to test or configure the probe. A USB port is provided to download the last 24hours recorded measurements as well as a diagnostic file containing the configuration and useful information for remote troubleshooting. The software of the controller can also be upgraded by connecting a USB key. An RS485 port supports MODBUS protocol to transmit each measuring channel value to a Data Acquisation System and can be connected a SCADA system. Additional parameters like status code, error code, calibration values, are available as Standard protocols in Diagnostics. The full UV-Vis absorbance spectrum can also be read under the Modbus protocol as a table of 512 float values with starting wavelength and pitch.
When different streams need to be analysed, for example inlet and outlet of a plant, the wall mount controller comes in two – channel and four-channel options, which caters to monitoring upto four stations simultaneously.
The Universal Standalone Controller Aqualog 2000 UV drives a solenoid valve on compressed air to clean the probe. It can alternately drive an air compressor if no air network is available on site. The period and cleaning time are adjustable to adapt to different applications.
| Measuring method | UV – Vis Spectroscopy |
| Wavelength | 180 – 750 nm |
| Light Source | Pulsed Xenon Lamp |
| Accuracy | +/- 2 % |
| Response Time | < 1 min |
| Turbidity Compensation | Integrated by Reference Wavelength method |
| Light Source life | 10 years |
| Mounting; Depth | Immersion, Maximum 10 m |
| Cleaning System | By Compressed Air (can be controlled by Aqualog 2000 UV) |
| Operating Temperature | 0 – 60 O C |
| Sensor Protection | IP 68 |
| Operating Pressure | 0 – 3 bar |
| Velocity | 3 m/s max |
| Body material | SS 316L Standard; Titanium for Industrial Process Waste Water (ETP) |
| Wet materials | Quartz, FKM (Viton), Stainless steel or titanium (option) |
| Dimensions | 60 x 500 mm |
| Weight | Approx. 5 kg |
| Certification | TUV Rheinland (EN 61010-1, EN 61326), CE |
| Parameter | Standard Range | Typical Repeatability | Accuracy |
| UV 254 | 0 – 500 Abs/m | 0.5 Abs/m 2 Abs/m 5 Abs/m |
± 2 % |
| COD by UV | 0-100 mg/l COD (river water) | ± 0.2 mg/l COD | ± 2 % |
| correlation | 0 - 20,000 mg/l COD (waste water) | ± 20 mg/l COD | |
| BOD by UV correlation | 0-100 mg/l COD (river water) 0 - 20,000 mg/l COD (waste water) |
± 0.2 mg/l BOD ± 20 mg/l BOD |
± 2 % |
| TOC by UV correlation | 0-100 mg/l COD (river water) 0 - 20,000 mg/l COD (waste water) |
± 0.2 mg/l TOC ± 20 mg/l TOC |
± 2 % |
| Nitrate NO3 | 0-15 mg/l NO3 (0 - 4 mg/l N-NO3) 0 - 50 mg/l NO3 (0 - 15 mg/l N-NO3) 0 - 150 mg/l NO3 (0 - 40 mg/l N-NO3) |
± 0.1 mg/l NO3 ± 0.3 mg/l NO3 ± 1 mg/l NO3 |
± 2 % |
| Colour (Hazen or APHA) | 0 – 1000 Pt-Co | ± 0.5 mg/l Pt - Co | ± 2 % |
| TSS | 0 – 500 mg/l 0 – 5000 mg/l |
± 0.5 mg/l TSS ± 5 mg/l TSS |
± 2 % |
| UVI 5000 H | Full spectrum UV-Vis absorbance spectrum probe Optical path: 1 mm Cable: 10 metres Has to be connected to an Aqualog 2000 UV |
| UVI 5000 L | Full spectrum UV-Vis absorbance spectrum probe Optical path: 3 mm Cable: 10 metres Has to be connected to an Aqualog 2000 UV |
| Aqualog 2000 UV | Multi-channel controller only |
| Note: Refer to product catalogue | |
