High Efficacy and Cost Efficiency

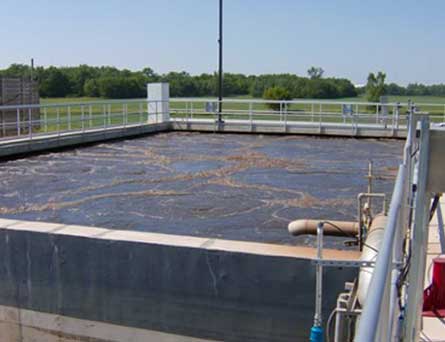

equential Batch Reactor-VEPOSBR is one of the most advanced sequential batch reactors developed by Anodyne for wastewater treatment. VEPOSBR accomplishes equalisation, aeration and clarification in timed sequence batch modes, especially for domestic wastewater – all in a single reactor basin. This variant of ASP technology uses one basin wherein one part of the cycle such as aeration, another tank will be settling and discharging the treated sewage in a cyclically repeated operation. The cycle time of treatment of batches can be optimised to suit variations in loads. Aerobic phase and controlled anoxic phase are used to reduce organics to suit variations in loads, as well as nitrogen and phosphorus compounds. High efficiency fine bubble non-clog membrane diffused aeration is preferred.
Municipal Sewage Treatment
Removal Of BOD
Denitrification
Compact Design Aids in for quick and easy installation, and space efficiency and is scalable
Equalization, biological treatment and clarification all achieved in a single reactor in a timed sequence
Better aeration control, denitrification, and lower power consumption
Less and simpler equipment, thus reduces maintenance
Biological N and P removal without need for chemicals
Suppressed filamentous bacteria thus lower potential for sludge bulking
Superior sludge settling due to bio-selector and cyclic sequences
30% less sludge production than competitor systems
Automatic control system
Design flexibility
Simplicity of operation put operators at ease.
Minimal footprints
| Technology | SBR (Sequential Batch Reactor) | |
| Treatment Capacity | 10 – 10000 KLD (0.01 – 10 MLD) | |
| Fabrication Type | Prefab/Containerized : 5 – 150 KLD
On – Site Fabrication: 5 – 5000 KLD (0.005 – 5 MLD) Civil : 10 – 10000 KLD (0.01 – 10 MLD) |
|
| Material Of Construction | Prefab/Containerized | MS Epoxy / FRP |
| On – Site Fabrication | ||
| Civil | Bricks(Common Burnt Clay bricks/Concrete Bricks/Engineering Bricks/ Fly Ash bricks for Non-Humid areas) ; Sand ; Cement ; Paint | |
| Piping | Application | • Interconnecting all modules and tanks • Distribution of Aeration System |
| Material of Construction (MOC) | uPVC / PP with MPV | |
| Consumables | • Bacteria • Chemicals for Equalization • Chemical for Disinfection at Tertiary Stage |
|
| Sludge Handling | • Sludge Drying Bed • Filter Press |
|
| Polishing System / Reuse | Depends on source of application • Reverse Osmosis • Ultra-Filtration • Softener |
|
| VEPO-STP-C-T-M |
| C – Capacity |
| T - Technology |
| M - Material OF Construction |
